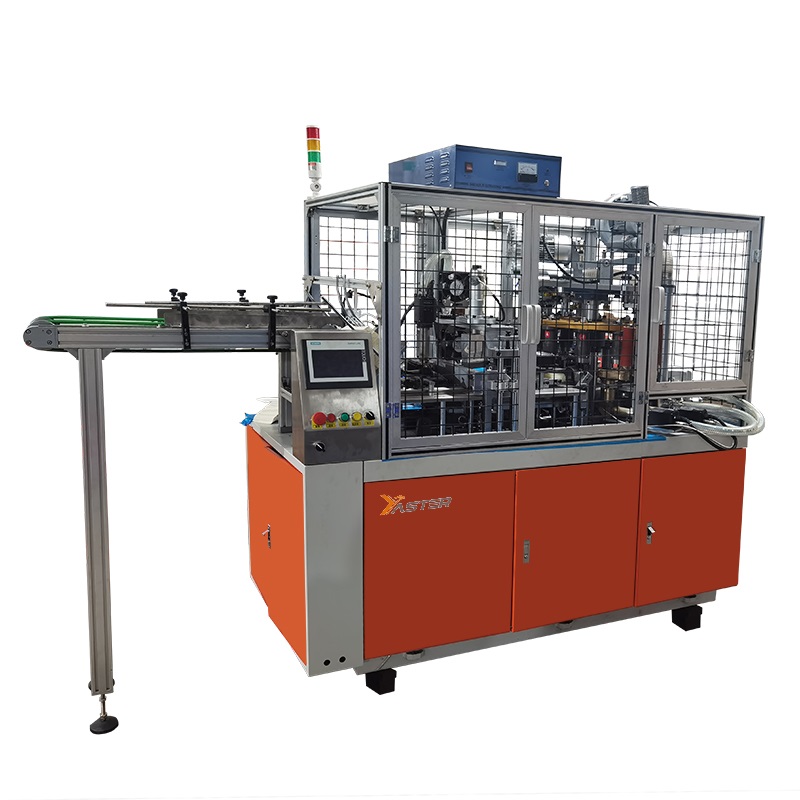

YAST-H100 High Speed conveyor feeding paper cup forming machine



Our latest design double plates paper cup forming machine is a highly intelligent machine,  which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding through conveyor belt , paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by magic hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre-heating, bottom knurling,double crimping and  cup discharging.

Performance Characteristics:

The photoelectric eye sensor from South Korea is equipped with 10 sensors from paper feeding, side sealing, cup setting, bottom punching, bottom heating, edge rolling, cup unloading, cup counting, through multiple sensors detection, can realize counting, cup dropping, bottomless, no paper and other automatic detection, alarm automatic stop and other functions.One piece feeding paper corresponding one cup bottom,never empty correspondence,PLC touch screen control, simple operation, at a glance.

Technical Parameter:

YAST-H100 PLC with ultrasonic and collection table

Paper Cup Size

1.5-16oz(Mould changeable)

Raw Material

150-380g/㎡(one side or two-side PE film coated /laminated paper)±20g/㎡,200-350g paper need ultrasonic device



Power Source

220v/380v 50HZ/60HZ 9.0kw

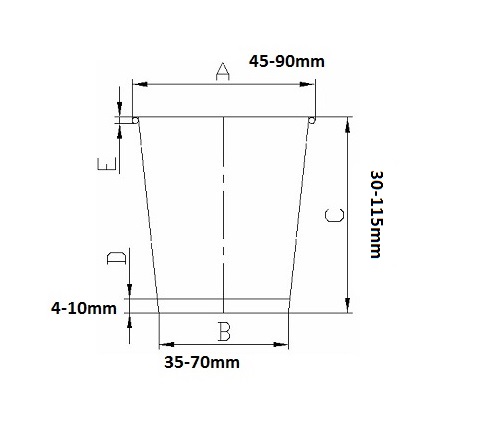

Cup size bottom


Top mouth




Bottom Knurling Depth


Top Curling Rim Dameter

Popular about ∅2.5-∅3mm

Total Weight


Machine Package Size


Working Air Source


Machine power


Bottom knurling


 Air compressor need purchased by yourself.

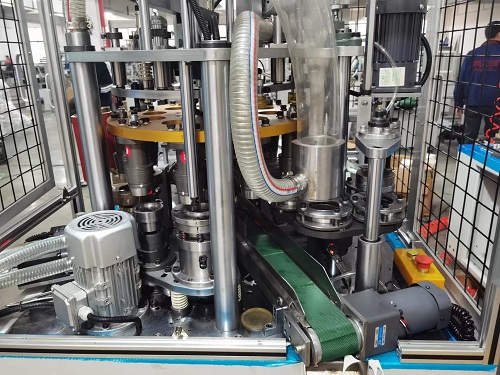

Machine Detail:

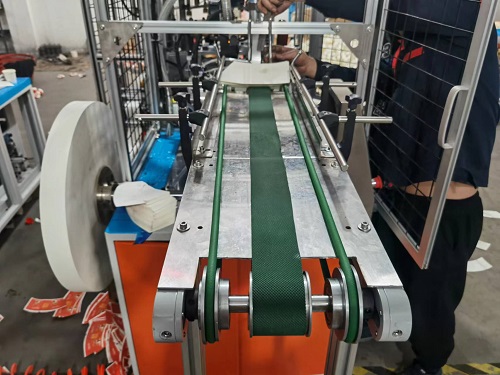

A Conveyor belt feeds paper , making it to prepare paper in advance.

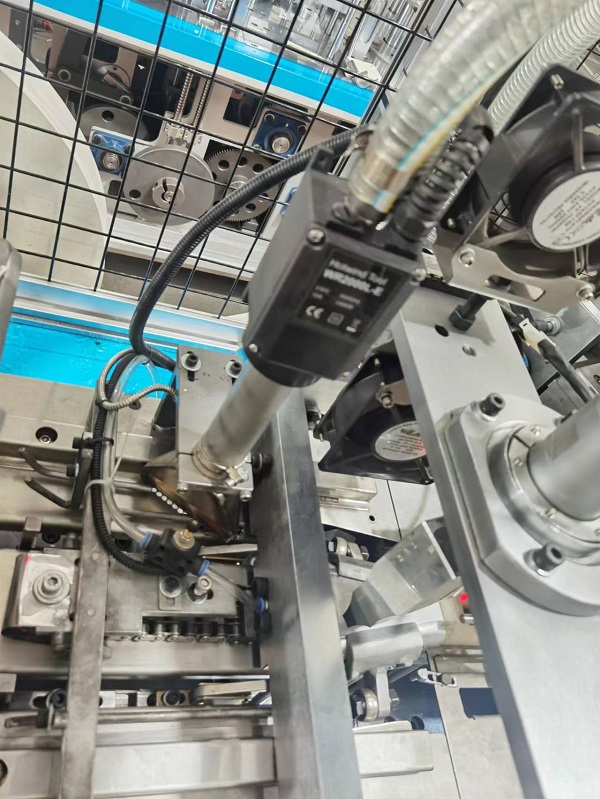

Pre-heating before ultrasonic sealing ,double heating ,can be in high speed operation, ultrasonic wave in a very short time can still very good fast bonding.


Double crimping paper cup mouth , so that paper cup mouth can still be very smooth and beautiful at high-speed operation.

Know more about the machine please contact us .


  1. Price Term:  Ex-factory price.
  2. Payment: T/T (30% for deposit, 70% before delivery)
  3. Load time:   45   working days at sight the deposit.
  4. Packaging: Wooden packing applies to export
  5. After sale service:
  1. Spare parts guarantee for one year in machine arrival.(We’ll send the the spare parts with the machine).
  2. The machine we ‘ll be debugged before delivery,and the customers only need to connect the electricity and air compressor to produce the machine.
  3. We have the Installation Instruction of the machine for you . It’s easy to install, no need technician go to your country, save the costs.
  4. If Send the technician for installation & training. Buyer bears the cost (round tickets, accommodation, and allowance of 100 USD per day.


5.Why choose our machine?
Our machines are of high quality and we have a copyright reputation in the market. We guarantee to complete the delivery of the machine within the contract period.
we have more than 10 years of rich experience for machinery manufacturing.

6.How about warranty period of the product?
 The product warranty period is generally one year, and our company provides lifetime maintenance services. If the machine has quality problems, our company will help the customer to solve it .

7.How about Machine installation?
We will arrange engineers to your company for installation but the cost will be borne by you.

8.What should we charge for the engineer?
You should charge the cost of visa , air tickets,food,hotel and the salary of 100USD one day per person.

9.How to solve the problem encountered in use?
 If there is any problem in the process of using the product, the customer can directly call or send an email to our after-sales department (24-hour hotline). The personnel of our department will respond immediately and make a decision on the response measures within 24 hours.
